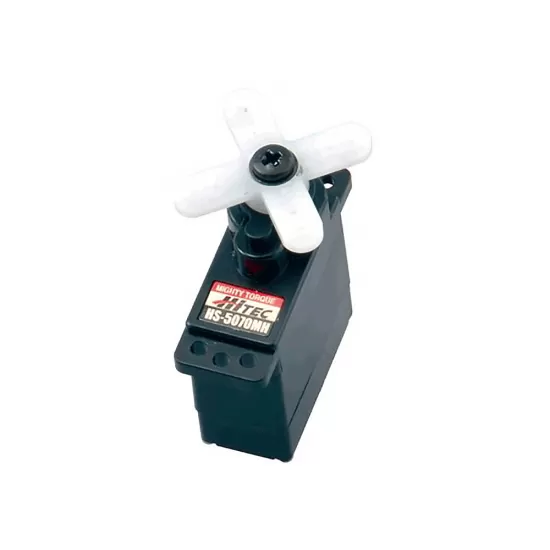

Hitec HS-5070MH 12.7g Metal Gear Digital Micro Servo

Hitec HS-5070MH digital micro servo is engineered for high-performance applications where space is limited. Ideal for high-speed park flyers, small-scale aerobatic aircraft, and precision robotics, this servo combines 12.7g of lightweight efficiency with reliable 52.8 oz-in @ 7.4V of torque output and advanced digital precision.

Powered by a durable cored metal brush motor, this servo offers reliable speed and torque while maintaining excellent efficiency. Its digital circuitry ensures precise centering and consistent performance, especially when running on 2-cell LiPo batteries. Designed with strength and agility in mind, the HS-5070MH is an ideal fit for demanding micro-scale applications.

Key Features

Lightweight Design: Weighing in at only 12.7g, the HS-5070MH is ideal for micro airframes and robotics.

High Voltage Capability: Optimized for 2S LiPo systems, this servo delivers strong performance at higher voltages.

Durable Gear Train: Built with 1 Heavy Duty Resin & 4 Metal Gears, this servo provides smooth and reliable performance under demanding conditions.

Cored Metal Brush Motor: Designed with Hitec’s cored motor, the HS-5070MH provides dependable speed, torque, and long service life.

Compact Micro Size: With an 11.6mm case size, this servo is the perfect fit for tight installations in small-scale aircraft, helicopters, and robotics applications.

Fully Programmable: Via the Hitec DPC-20 and/or HFP-30 digital servo programmers, the performance of the HS-5070MH can be fined tuned for customized response curves, fail-safe settings, and more.

Specifications

Wide Operating Voltage Range: 3.5V ~ 8.4V (2S LiPo)

Torque:

6.0V: 43.1 oz-in (3.1 kgf-cm)

7.4V: 52.8 oz-in (3.8 kgf-cm)

Speed:

6.0V: 0.15 sec/60°

7.4V: 0.12 sec/60°

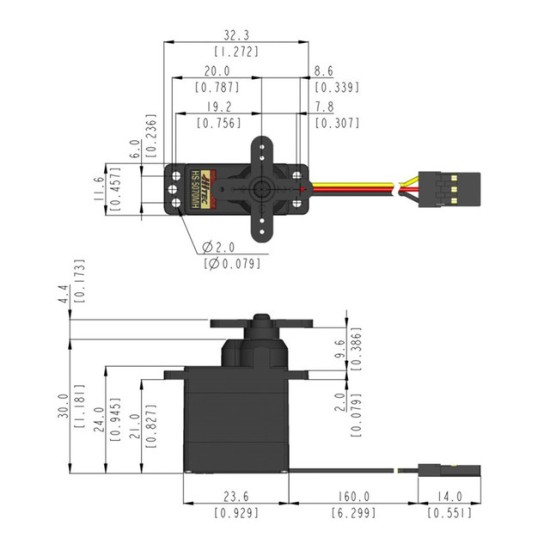

Dimensions: 23.6 x 11.6 x 30.0mm

Weight: 12.7g

Position Sensor Type: Digital

Output Spline: 24T

Ideal Applications

Park flyers and indoor 3D aircraft

Gliders and small-scale sailplanes

Lightweight UAVs and drones

Robotics projects requiring micro actuation

Educational and STEM kits

Radio Control Applications

Parkflyer < 65 oz.

Sport Plane 36 - 41 oz.

Sailplane < 2 meter / DLG

Electric Helicopter 500-750mm

Gas Helicopter 30-39 Class

On Road 1/16th

Buggies 1/16th

Short Course / Truck 1/8th

Power Boat 1/16th
