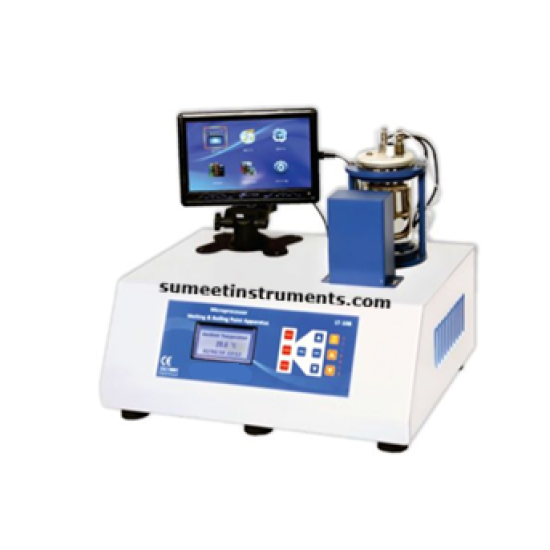

The Digital Melting Point Apparatus is a laboratory instrument designed for accurate determination and observation of the melting point of solid samples. It features controlled heating, a 0.1°C temperature resolution, multiple heating modes and an integrated HD camera for clear visualization of capillaries during testing.

The system supports Slow, Normal and Rapid heating modes, allowing users to select the appropriate heating profile according to the sample and testing requirements. Sample results can be stored with date, time, sample number and batch number for convenient laboratory data management.

Key Features

• 0.1°C Temperature Resolution for precise temperature observation

• Ambient to 300°C operating temperature range

• Three Heating Modes: Slow, Normal and Rapid

• 7-inch TFT LED Display for clear viewing

• 128 × 64 Graphical LCD & 7-inch LED HD Display

• HD Camera for viewing capillaries during melting point determination

• Built-in Stirrer with controllable stirring speed

• Stirrer ON/OFF Indication on the display

• USB Data Output for transferring stored test results

• Storage Capacity: Up to 1,000 sample results

• Stores date, time, sample number and batch number

• Batch Number Entry for organized sample records

• Silicon Oil Bath with 200 mL capacity

• Teflon cover with oil immersion heater

• Three capillary holes for sample observation

• Suitable for samples with known or unknown melting points

Technical Specifications

HEATING MODES

Slow Mode

Suitable for controlled heating when precise observation near the melting point is required.

Normal Mode

Designed for routine melting point determination and general laboratory testing.

Rapid Mode

Provides faster heating when rapid sample testing is required.

Sample Handling

The instrument is designed for fine powdered samples that are properly dried. The sample is filled into a capillary tube to a recommended height of approximately 4–6 mm and placed into the oil bath for observation.

The integrated HD camera provides a clear view of the capillary, helping users observe the sample during the melting process.

Data Management

The Digital Melting Point Apparatus can store up to 1,000 sample test results along with:

• Date

• Time

• Sample number

• Batch number

Stored results can be viewed on the display and transferred through the USB port, supporting convenient laboratory record management.

Applications

The Digital Melting Point Apparatus is suitable for melting point testing and quality control applications in:

• Pharmaceutical laboratories

• Chemical laboratories

• Research and development laboratories

• Educational institutions

• Quality control laboratories

• Food and material testing laboratories

• Industrial laboratories

• Product identification and purity testing

Why Choose This Digital Melting Point Apparatus?

With 0.1°C temperature resolution, heating up to 300°C, three selectable heating modes, HD camera visualization and 1,000-result data storage, this digital melting point instrument provides a practical solution for routine laboratory melting point determination.

Its integrated stirrer, oil bath heating system, USB data output and touchscreen/display-based operation make it suitable for laboratories requiring controlled heating, clear sample observation and convenient result management.
